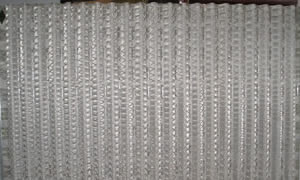

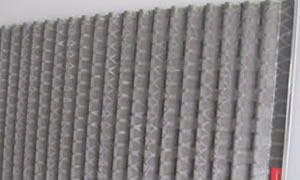

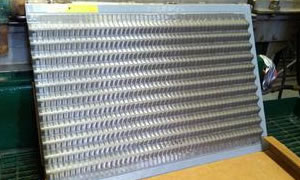

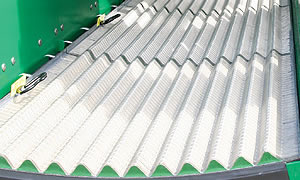

Wave Type Screens
Wave type screens are the replacement products of flat screens. The effective area is 125% to 150% of flat screens. Without changing the construction of shakers, the using of the wave type screens can improve the quality of drilling fluid and increase the production. We can supply wave type screens with mesh sizes ranging from 60 to 250.
Screen Model |
Pange of Mesh |
Dimension (Length x Width) |
Weight(Kg) |
HYB-1 |
80-325 |
635×1253mm |
17.5 |
HYB-2 |
80-325 |
697×1050mm |
7.5 |
HYB-3 |
80-325 |
697×1053mm |
5.8 |
HYB-4 |
80-325 |
915×1150mm |
10 |
